MVO™ 6-36×56 is widely regarded as the most versatile all-around configuration, offering an ideal balance between performance, size, and weight for a wide range of applications. These scopes typically feature a variable magnification starting at 6x and extending to anywhere between 36x, providing the flexibility needed for both close and intermediate-range engagements. Available with a variety of objective lens diameters, high-power optics are especially favored for their exceptional field of view, impressive depth of field, and superior brightness and image clarity. Whether for hunting, professional, or competitive shooting, they deliver optimal performance across a range of conditions and distances.

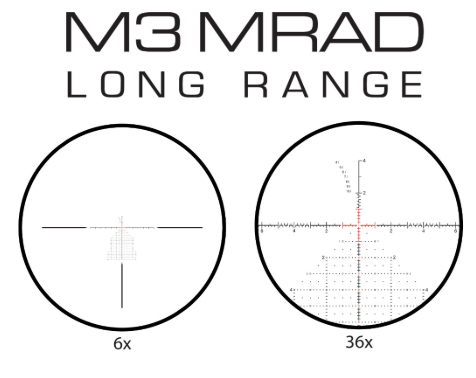

Featuring the M3 MIL reticle is a first focal plane riflescope that utilizes a grid reticle pattern that allows visual holds for long range precision shooting. The M3 MIL reticle changes size as the magnification changes. The reticle appears small at low magnification and scales up in size at high magnification. Illustration 1 shows the reticle at low magnification. Illustration 2 shows the reticle at high magnification.
12 Mils of holdovers broken into .2 Mil increments for exact shot placement on the whole MIL lines and .5 mil dots on every half mil between the whole mil lines. 1 to 5 Mils of left and right wind holds allow adjustment for 20-30 mph winds with most popular calibers out to 1,000 yards.
The main horizontal stadia also features .1 Mil hash marks spaced at .1 Mil increments between the 3 and 5 MIL holds. The bottom side of the horizontal stadia features .2 Mil increment hash marks on the main vertical stadia. .1 MIL rings mark every whole MIL. Windholds are provided in .2 Mil increments on both sides of the vertical stadia along the .1 Mil rings at the whole Mils, .5 MIL wind dots are provided along the half-Mils between every whole Mil. If you prefer to dial the turrets to a precise aiming point, the M3 features a 0.05 Mil center dot to hit your mark.
- High-quality German SCHOTT glass
- Multi-Coated Lenses for minimal glare and reflection
- Low aberration-optimized image quality with 92% Light Transmittance
- Edge to edge sharpness, high contrast, and high-resolution
- Reliable adverse temperature and environmental performance with -40° to 160° Fahrenheit Operational Range and IPX-8 Waterproof Rating
- Rated for .338 LAPUA Magnum
- Red and Green Reticle Illumination
- 12-hour Auto Shut-OFF

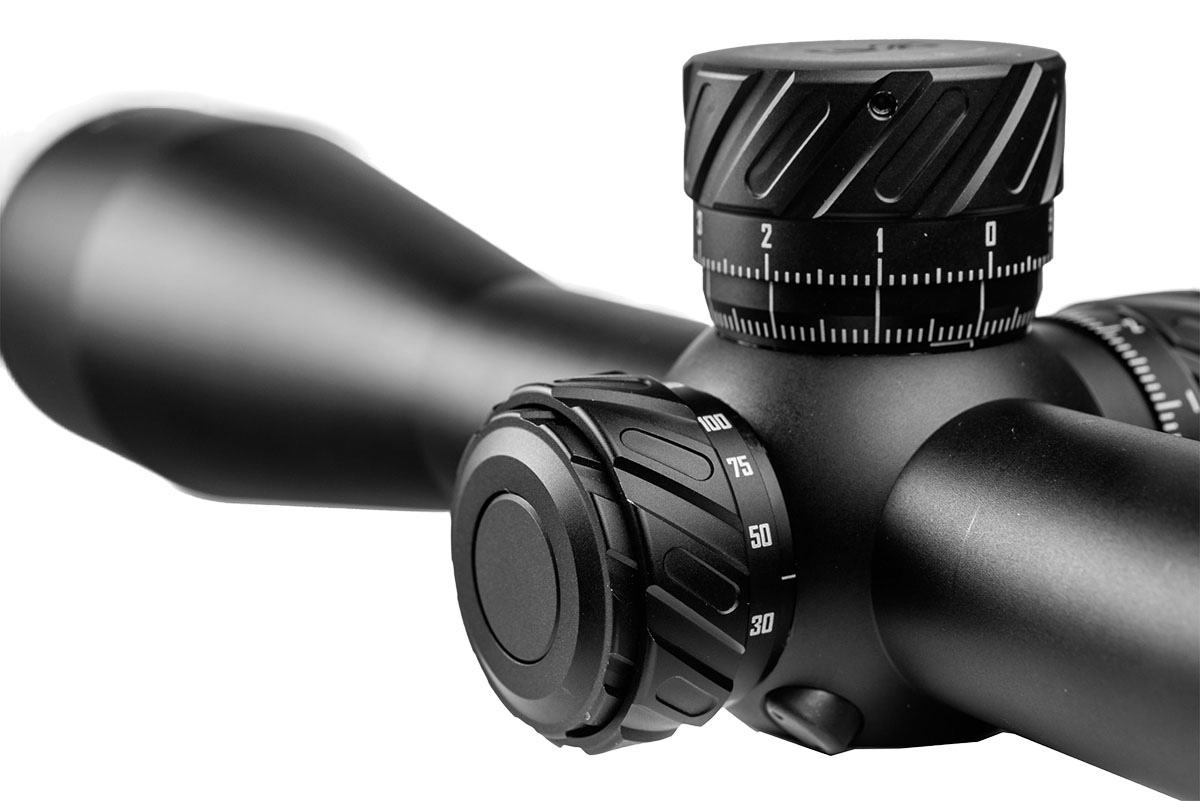

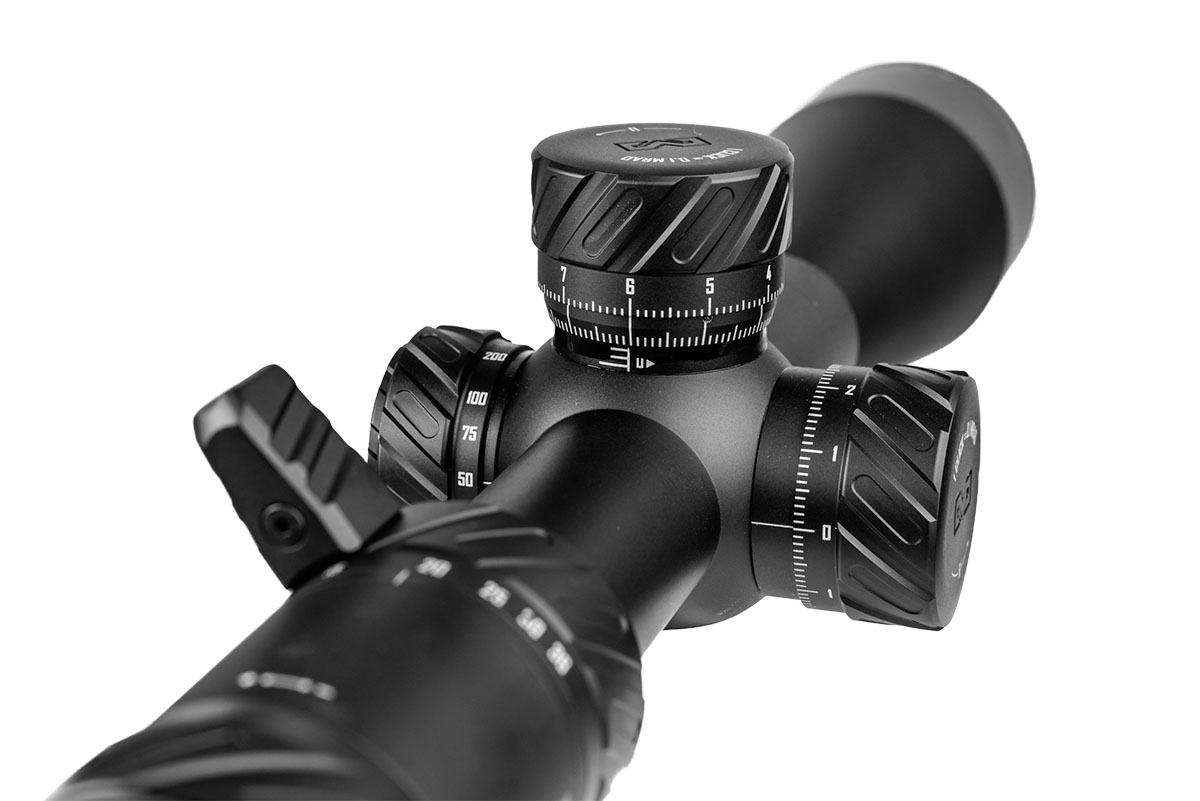

- Intuitive lockable and zero-resettable Windage and Elevation Turrets, serrated and oversized for use with gloves
- Detachable Throw Lever Extension for fast magnification zoom
Tech Spec
| Overall Length |
15.1” (383.5 mm) |
| Weight (w/ battery) |
39.5 oz (1120.4 g) |
| Tube Diameter |
34mm |
| Eyepiece length |
3.74” (95.0 mm) |
| Rear Mounting Space |
2.2” (55.9 mm) |
| Front Mounting Space |
2.2” (55.9 mm) |
| Objective Length |
5.12” (130.0 mm) |
| Outer Objective Bell Diameter |
2.56” (65.0 mm) |
| Outer Eyepiece Diameter |
1.89” (48.0 mm) |
| Threaded Objective Bell |
Yes |
| Battery Cap |
Twist Cap |
| Housing Material |
6061-T6 Aluminum |
| Actual Magnification |
6x - 36x |
| Focal Plane |
First Focal Plane |
| Objective Lens Diameter |
56 mm |
| Eye Relief (inches) |
3.54” (89.9 mm) |
| Linear Field of View (ft @ 100 Yds) |
6x: 22.5 36x: 3.9 |
| Parallax Control |
10 yds to Infinity |
| Diopter Type |
Adjustable, Friction Secured |
| Reticle |
M3 MRAD |
| Reticle Type |
Etched Glass |
| Reticle Illumination |
Yes |
| Reticle color(s) |
Red and Green, Daylight Bright |
| Range Estimation |
Yes (Yards) |
| Caliber Rating |
.338 Lapua Magnum |
| Exposed optical surface treatment |
Broadband anti-reflection coating of all glass-to-air interfaces |
| Glass components |
Extra Low Dispersion (ED) & High Definition (HD) Schott Glass |
| Turret Style |
Tactical, Locking.
Exposed Adjustable |
| Zero Reset |
Yes |
| Zero Stop |
Yes |
| Turret unit of measurement |
MRAD |
| Throw Tab with Lever Extension |
Yes |
| Windage and Elevation - 1 click increment |
0.1 MRAD |
| Total Elevation Adjustment UP |
19 MRAD |
| Total Elevation Adjustment DOWN |
13.5 MRAD |
| Elevation Adjustment per Revolution |
10 MRAD (Total 32 MRAD) |
| Total Windage Adjustment |
10 MRAD, 5 MRAD per side |
| Windage Adjustment per Revolution |
10 MRAD |
| Battery Type |
CR2032 3V |
| Battery Loading |
Left Turret |
| Distinct sight brightness levels not including OFF |
8 Red, 8 Green |
| NV brightness levels |
N/A |
| Brightness Mode(s) |
Manual |
| Battery life, minimum time of use at brightness setting 5 of 10 with approved battery at Ta1 |
600 hours (@ mid setting) |
| Power ON/OFF |
Easy Tap Button |
| Auto Power-Off Duration |
12-hr auto-off |
| Water resistance, minimum depth exposure without leak into optical or battery cavity |
IPX-8 |
| Operating Low temperature |
-40°F (-40°C) (Conform to MIL-STD-810G) |
| Operating High temperature |
+160°F (70°C) Conform to MIL-STD-810G) |
| Storage temperature |
-40°F (-40°C) |
| Housing Finish Coating/Color |
Type II Anodize, Matte Black |
| Sun Shade |
Yes |
| Throw Lever Extension |
Yes |
| Flip-Style Lens Caps |
Yes |
